Texas Instruments TAS5612LA / TAS5622A PurePath™ Class-D Power Amps
Texas Instruments TAS5612LA is a feature optimized 125W stereo / 250W mono class-D power amplifier based on the TI TAS5612LA. These amplifiers use large MOSFETs for improved power efficiency and a novel gate drive scheme for reduced losses in idle and at low output signals leading to reduced heat sink size. TAS5622A is a 125W stereo / 250W stereo thermally-enhanced version of the class-D power amplifier based on the TAS5612A using large MOSFETs for improved power efficiency and a novel gate drive scheme for reduced losses in idle and at low output signals leading to reduced heat sink size.
Features
- TAS5612LA:
- PurePath™ HD Integrated Feedback Provides:
- 0.05% THD at 1W into 4Ω
- >65dB PSRR (No Input Signal)
- >105dB (A-weighted) SNR
- Pre-Clipping Output for Control of a Class-G Power Supply
- Reduced Heat Sink Size due to use of 60mΩ Output MOSFET with >90% Efficiency at Full Output Power
- Output Power at 10%THD+N
- 125W / 4Ω BTL Stereo Configuration
- 250W / 2Ω in PBTL Mono Configuration
- Output Power at 1%THD+N
- 105W / 4Ω BTL Stereo Configuration
- 55W / 8Ω BTL Stereo Configuration
- Click and Pop Free Startup
- Error Reporting Self-protected Design with UVP, Over Temperature, and Short Circuit Protection
- EMI Compliant when used with Recommended System Design
- PurePath™ HD Integrated Feedback Provides:
- TAS5622A:
- PurePath™ HD Integrated Feedback Provides:
- 0.025% THD at 1W into 4Ω
- >65dB PSRR (No Input Signal)
- >105dB (A-weighted) SNR
- Pre-Clipping Output for Control of a Class-G Power Supply
- Reduced Heat Sink Size due to use of 40mΩ Output MOSFET with >90% Efficiency at Full Output Power
- Output Power at 10%THD+N
- 125W / 4Ω BTL Stereo Configuration
- 250W / 2Ω PBTL Mono Configuration
- Output Power at 1%THD+N
- 105W / 4Ω BTL Stereo Configuration
- 210W / 2Ω PBTL Mono Configuration
- Click and Pop Free Startup
- Error Reporting Self-protected Design with UVP, Over Temperature, and Short Circuit Protection
- EMI Compliant when used with Recommended System Design
- PurePath™ HD Integrated Feedback Provides:
Applications
- Blu-ray™/DVD receivers
- High power sound bars
- Powered subwoofer and active speakers
- Mini combo systems

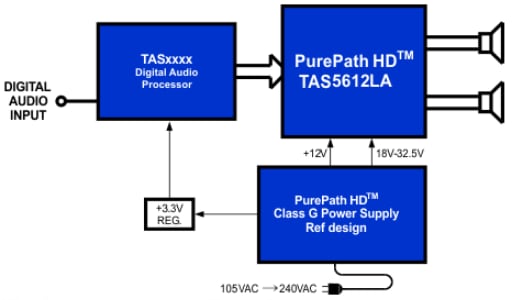

Block Diagram
