ScioSense ENS161 Digital Metal-Oxide Multi-Gas Sensors
ScioSense ENS161 Digital Metal-Oxide Multi-Gas Sensors are based on metal oxide (MOX) technology with four sensor elements supporting isothermal and low-power operating modes. The devices provide an incomparable abundance of fully processed output signals. The independent hotplate control enables the detection of a wide range of volatile organic compounds (VOCs), including ethanol, toluene, hydrogen, and oxidizing gases, with superior sensitivity. The ENS161 offers a low-power mode (700µA average current consumption) and an ultra-low-power mode (150µA average current consumption). This ENS16 supports intelligent algorithms to process raw sensor measurements on-chip. These algorithms calculate TVOC- and CO2-equivalents, various air quality indices (AQIs), perform humidity and temperature compensation, and baseline management, all on-chip.
The raw sensor measurements can be read for further customization. The ScioSense ENS161 is offered in a compact 3mm x 3mm x 0.9mm LGA package with SPI and I2C slave interfaces to communicate with a primary host processor. The ENS161 is an established and maintenance-free technology designed for high volume and reliability.
Features
- TrueVOC® air quality detection in compliance with worldwide IAQ standards
- Low power operating mode reducing power consumption down to 700μA
- Hassle-free on-chip heater drive control and data processing
- No need for external libraries
- No impact on MCU performance
- Ultra low-power mode 150µA average current consumption
- Low-power mode 700µA average current consumption
- 3mm x 3mm x 0.9mm LGA package
- 1.3mW power consumption
- Standard, fast, and fast mode plus I2C and SPI interfaces with separate VDDIO up to 3.6V
Applications
- Energy-critical applications in
- Building Automation/HVAC
- Indoor air quality
- Demand-controlled ventilation
- Home appliances
- Cooker hoods
- Air cleaners/-purifiers
- Building Automation/HVAC
- IoT devices
- Wearables / Mobiles
Specifications
- Operating ranges
- -40°C to +85°C Temperature
- 5% to 95% Humidity
- 1.71V to 1.98V VDD
- 1.71V to 3.6V VDDIO
Videos
Related Products
ScioSense ENS160 Digital Metal Oxide Multi-Gas Sensors
Offers a 1.67V to 1.98V supply voltage range and up to +85°C temperature rating.
Associated Dev Tools
ScioSense ENS160 Evaluation Kit
Evaluates the ENS160 sensor that is designed for indoor air quality monitoring.
ScioSense ENS161 Evaluation Kit
Designed to evaluate the ENS161 multi-gas sensor, which is based on Metal Oxide (MOX) technology.
Mikroe MIKROE-6063 Air Quality 11 Click
Ein kompaktes Add-on-Board zur Überwachung und Analyse der Luftqualität in Innenräumen.

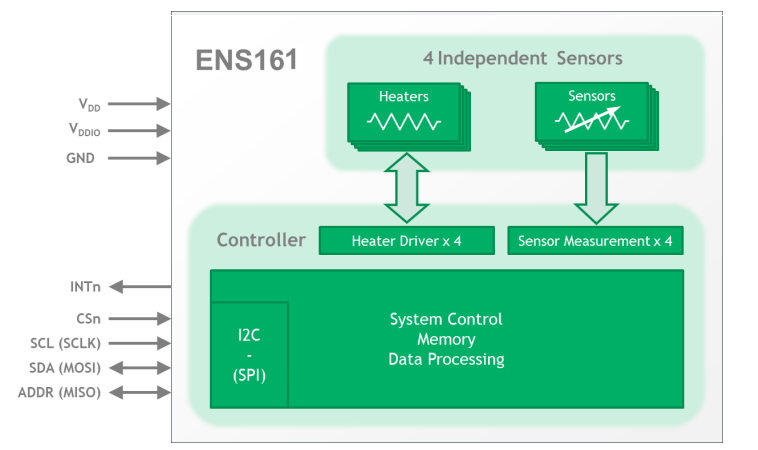

Block Diagram
PIN DESIGNATIONS
