Quectel GSM/NB-IoT EVB Kit
Quectel Wireless Solutions GSM/NB-IoT EVB Kit is designed to develop applications based on Quectel GSM, UMTS, and NB-IoT modules. The GSM/NB-IoT EVB Kit offers ease-of-use with many functional interfaces and LEDs to visualize the module's working status. The Quectel GSM/NB-IoT EVB Kit tests the GSM, UC15, and BC95 modules' basic functionalities.
Features
- Easy to use
- Abundant functional interfaces
- Human-machine interaction
- Visualization of a module's working status via LEDs
- Documentations and tools packaged in one CD
Kit Contents
- USB-to-UART converter cable
- USB cable
- RF cable
- Antenna
- 5V DC adapter
- Earphone
- Disk involving related documents and drivers
- Instruction sheet
- Bolts and nuts for fixing EVB
Applicable Modules
• Quectel GSM modules
• UC15 module
• BC95 module

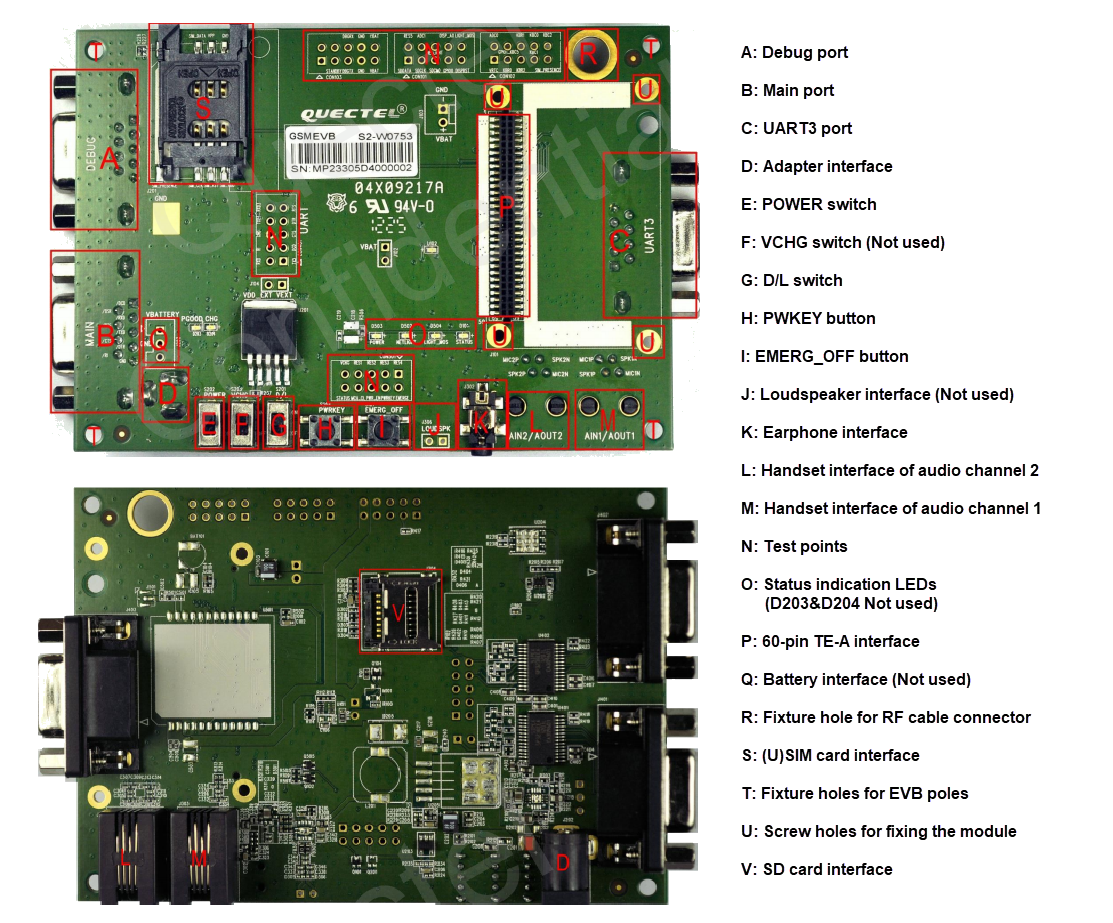

Top & Bottom View
