Omron Industrial Automation H5CX-N Ultra-Compact Digital Timer

Omron Industrial H5CX-N Ultra-compact Digital Timer replaces the popular H5CX timers and improvements include advanced functions and security settings. With a short body depth of only 59mm (for 24VAC / 12VDC to 24VDC models with screw terminals), the H5CX-N Digital Timer displays a very readable 12mm character height (on models with 4 digits). Color display options include red, green, and/or orange. The H5CX-N Ultra-compact Digital Timer offers isolation for the power supply circuit and input circuits for safety and reliability, as well as a new set value limit and output counter functions.

Features

  • Short body with depth of only 59mm
  • Character height of 12mm for better readability
  • Display characters can be switched between red, green, and orange
  • Power supply circuit and input circuits are isolated for safety and reliability
  • New set value limit and output counter functions
  • Changeable front panel
  • Instantaneous contact output
  • Operating voltage range of 85% to 110% of the rated supply voltage
  • -10°C to +55°C operating temperature range

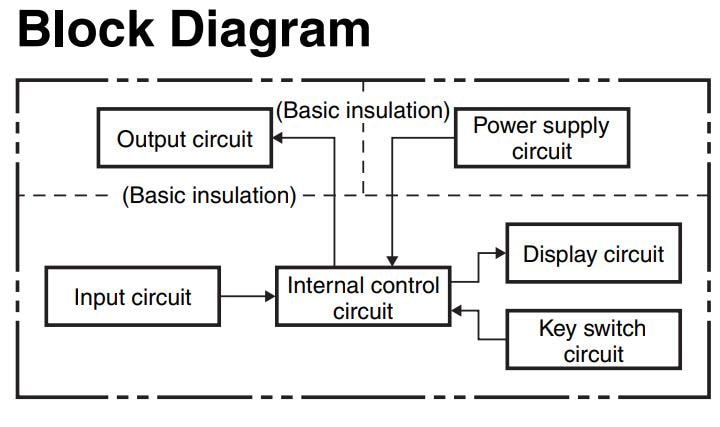

Block Diagram

Block Diagram - Omron Industrial Automation H5CX-N Ultra-Compact Digital Timer
