Mikroe PIR 3 Click
Mikroe PIR 3 Click provides efficient and reliable motion detection in various applications. The PIR 3 Click includes the Zilog (Littelfuse) ZDP323B1, which features high EMI immunity and precise motion detection capabilities. The ZDP323B1 offers a spectral filter window tuned to an 8um to 13um wavelength, dual sensing elements with a 0.6mm spacing, and a field of view of 148° on the X-axis and 136° on the Y-axis. Additionally, the board integrates the ZNCL10S PIR lens for maximum IR transmissivity and includes the Click Snap feature for flexible implementation.
The Mikroe PIR 3 Click ensures high performance and flexible implementation in demanding motion detection applications, including security systems, lighting control, and video doorbells.
Features
- On-board module from Zilog (Littelfuse) ZDP323B1 dual-element balanced differential pyroelectric (PIR) sensor
- High performance
- Excellent EMI immunity
- Tuned to an 8um to 13um wavelength for blocking unwanted IR energy
- 0.6mm element spacing for additional white light protection
- Typical field of view 148° on the X- and 136° on Y-axis
- Integrated the ZNCL10S PIR lens for maximum IR transmissivity
- I2C interface
- Click Snap and ClickID
- mikroBUS™ compatibility
- 3.3V or 5V input voltage
- M (42.9mm x 25.4mm) dimensions
Applications
- Security systems
- Lighting control
- Video doorbells

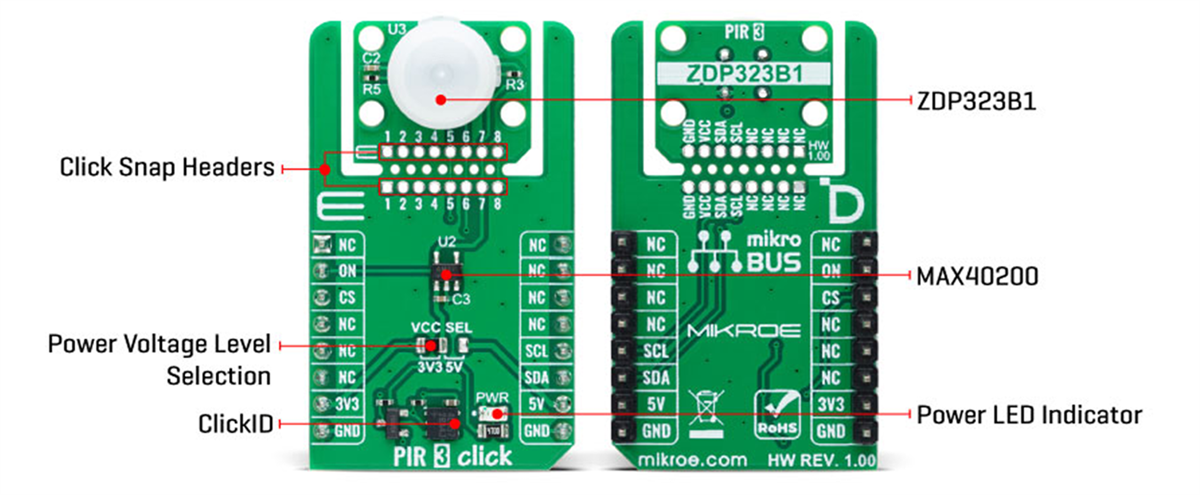

Overview
