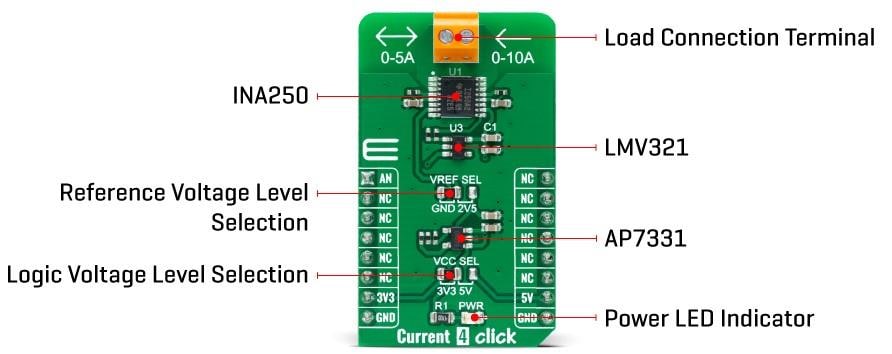

Mikroe Current 4 Click
Mikroe Current 4 Click features the Texas Instruments INA250 bidirectional, zero-drift current-shunt monitor. This voltage-output, current-sensing amplifier measures the voltage developed across the internal current-sensing resistor when current passes through it. Also, by selecting the reference voltage, the INA250 allows users to measure both unidirectional and bidirectional currents through the current-sensing resistor.
Features
- On-board modules
- Texas Instruments INA250 current-sense amplifier with a high-precision, low-drift shunt resistor which can deliver highly accurate measurements over a wide temperature range
- Low power consumption
- Precise integrated shunt resistor
- High accuracy
- 500mV/A gain
- Zero-drift
- Uni/bidirectional current measurements
- Analog interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Applications
- Test and measurement
- Load monitoring and power supplies, automotive
Overview
