KYOCERA AVX CAN BUS Automotive Varistors

KYOCERA AVX CAN BUS Automotive Varistors are zinc oxide (ZnO) based ceramic semiconductor devices with nonlinear voltage-current characteristics (bidirectional). These varistors are similar to back-to-back Zener diodes and an EMC capacitor in parallel. KYOCERA AVX CAN0005 CAN BUS Automotive Varistors have the added advantage of greater current and energy handling capabilities as well as EMI/RFI attenuation. These devices are fabricated by a ceramic sintering process that yields a structure of conductive ZnO grains surrounded by electrically insulating barriers, creating varistor-like behavior.

The varistors provide a large in-rush current capability, low capacitance to minimize signal distortion, fast turn-on times to conservatively clamp the energy before its maximum, and off-state EMI filtering through their bulk capacitance. These features coupled with an extremely low FIT rate and excellent process capability make the KYOCERA AVX CAN BUS Automotive Varistors an ideal device for automotive or general circuit protection.

Features

  • Compact footprint
  • High ESD capability (25kV)
  • High inrush current (8x20µs)
  • EMI-RFI attenuation
  • -55°C to +125°C operating temperature range
  • ≤18VDC working voltage
  • Low capacitance / low insertion loss
  • Fast response time
  • High reliability, 0.1 FIT
  • AEC-Q200 qualified

Applications

  • Communication Bus - CAN Bus, FLexRay, and more
  • General I/O protocols
  • Keyboard interfaces
  • Datalines
  • Sensors
  • Capacitance sensitive applications

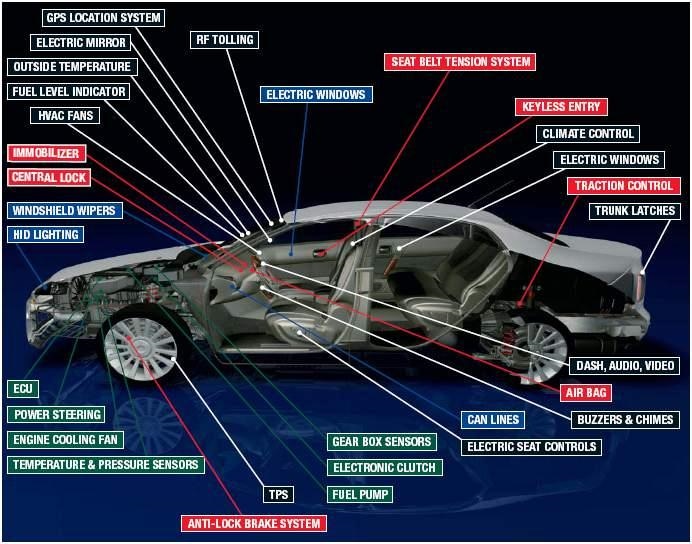

Circuit Protection Automotive Uses

Chart - KYOCERA AVX CAN BUS Automotive Varistors

Related Products

KYOCERA AVX TransGuard® Mehrschicht-Varistoren

Große Auswahl von SMT-Komponenten für den bidirektionalen Überspannungsschutz mit EMI/RFI-Dämpfung.

Learn Moreüber KYOCERA AVX TransGuard® Mehrschicht-Varistoren View Productsverwandt mit KYOCERA AVX TransGuard® Mehrschicht-Varistoren
View Results ( 14 ) Page
Teilnummer Datenblatt Varistor-Spannung Klemmspannung Maximaler Spitzenstrom Nennüberspannung
CANAT01RP CANAT01RP Datenblatt 120 V 22 V 4 A 15 mJ
CAN0001DP CAN0001DP Datenblatt 120 V 225 V 4 A 15 mJ
FLX0005WP FLX0005WP Datenblatt 26 V 45 V 4 A 20 mJ
CAN0001RP CAN0001RP Datenblatt 120 V 225 V 4 A 15 mJ
CAN0004DP CAN0004DP Datenblatt 100 V 180 V 4 A 15 mJ
CANAT01DP CANAT01DP Datenblatt 120 V 67 V 4 A 15 mJ
CANAT02DP CANAT02DP Datenblatt 70 V 22 V 4 A 15 mJ
CAN0001TP CAN0001TP Datenblatt 120 V 225 V 4 A 15 mJ
CAN0002DP CAN0002DP Datenblatt 70 V 145 V 4 A 15 mJ
CAN0002RP CAN0002RP Datenblatt 70 V 145 V 4 A 15 mJ
