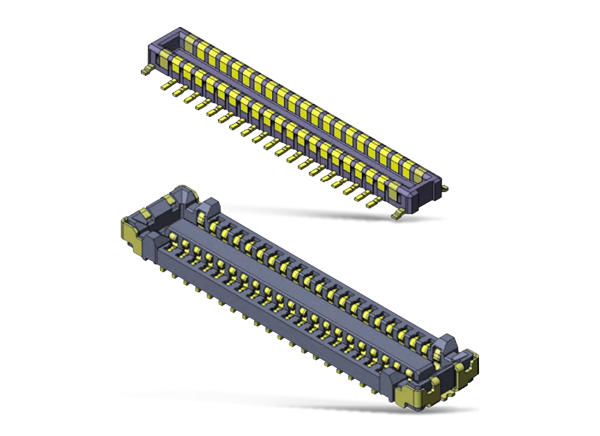

JAE Electronics WP25D 0.35mm Board-to-Board Connectors

JAE Electronics WP25D Connectors are stacking type board-to-board (FPC) connectors featuring special hold-downs that can be used as power supply terminals. These low-profile connectors feature a 0.35mm pitch, 2 rows, and 0.7mm stacking height. The series equips high-current terminals that help minimize the number of terminals typically required in standard connectors. JAE Electronics WP25D Connectors are ideal for high-density mounting in smartphones and other slim and compact communication devices.


  • 0.35mm pitch, 2 rows, 0.7mm stacking height
  • Two terminals for power supply compatible with 3A each
  • Two-point contact design resists twisting stress
  • Improved workability with a clear click feeling
  • Contact structure ensures high wear resistance and high contact reliability
  • Lead free (nickel barrier on contact prevents solder wicking)
  • 70mΩ maximum (initial) contact resistance
  • 0.3A per terminal AC, DC rated current per terminal (signal and power)
  • 50V AC, DC rated voltage
  • -40°C to +85°C operating temperature range


  • Communication devices
    • Smartphones
    • Mobile phones
