Fastron 11P/HC Fixed Inductors
Fastron 11P/HC Fixed Inductors are designed for high currents and feature a ferrite core material and PCB mounting style. The series offers a 10µH to 150mH inductance range, 35mA to 6.6A DC current range, and up to 10% tolerance. These inductors are available in shielded and unshielded options and with shorter leads. Fastron 11P/HC Fixed Inductors operate in a -55°C to +125°C temperature range.
Features
- Designed for high currents
- PCB mounting style
- Shielded and unshielded options
- Ferrite core material
- Shorter leads available
- RoHS compliant
Specifications
- 10µH to 150mH inductance range
- 35mA to 6.6A DC current range
- Up to 10% tolerance
- -55°C to +125°C temperature range

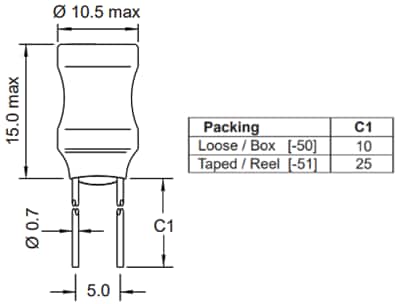

Dimensions (mm)
Datasheets
