Digilent MCC USB-1608G High-Speed Multifunction DAQ Devices
Digilent MCC USB-1608G High-Speed Multifunction USB DAQ Devices are an easy-to-use, easy-to-integrate, and easy-to-support data acquisition solution. The USB-1608GX and USB-1608GX-2AO are multifunction, high-speed, analog, and digital I/O USB devices. Each device delivers up to 16 SE/8 DIFF analog inputs, eight digital I/O channels, two counter inputs, and one-timer output. The USB-1608GX-2AO features two 16-bit analog output channels with DAC rates up to 500kS/s.
Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also enclosed are drivers for the most popular applications and programming languages, including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
Features
- 16 SE/8 DIFF analog inputs
- 16-bit resolution
- 500kS/s sample rate
- ±10V, ±5 V, ±2V, ±1V input ranges
- Two analog outputs (USB-1608GX-2AO only)
- Eight digital I/O
- Two counter inputs
- One timer output
- No external power is required
- Product compliance
- 8471.80.9000 HTC
- EAR99 ECCN
Kit Contents
- USB-1608GX or USB-1608GX-2AO
- USB cable
- Printed insert with DAQami quick start
- MCC packaging assembly/foam, etc

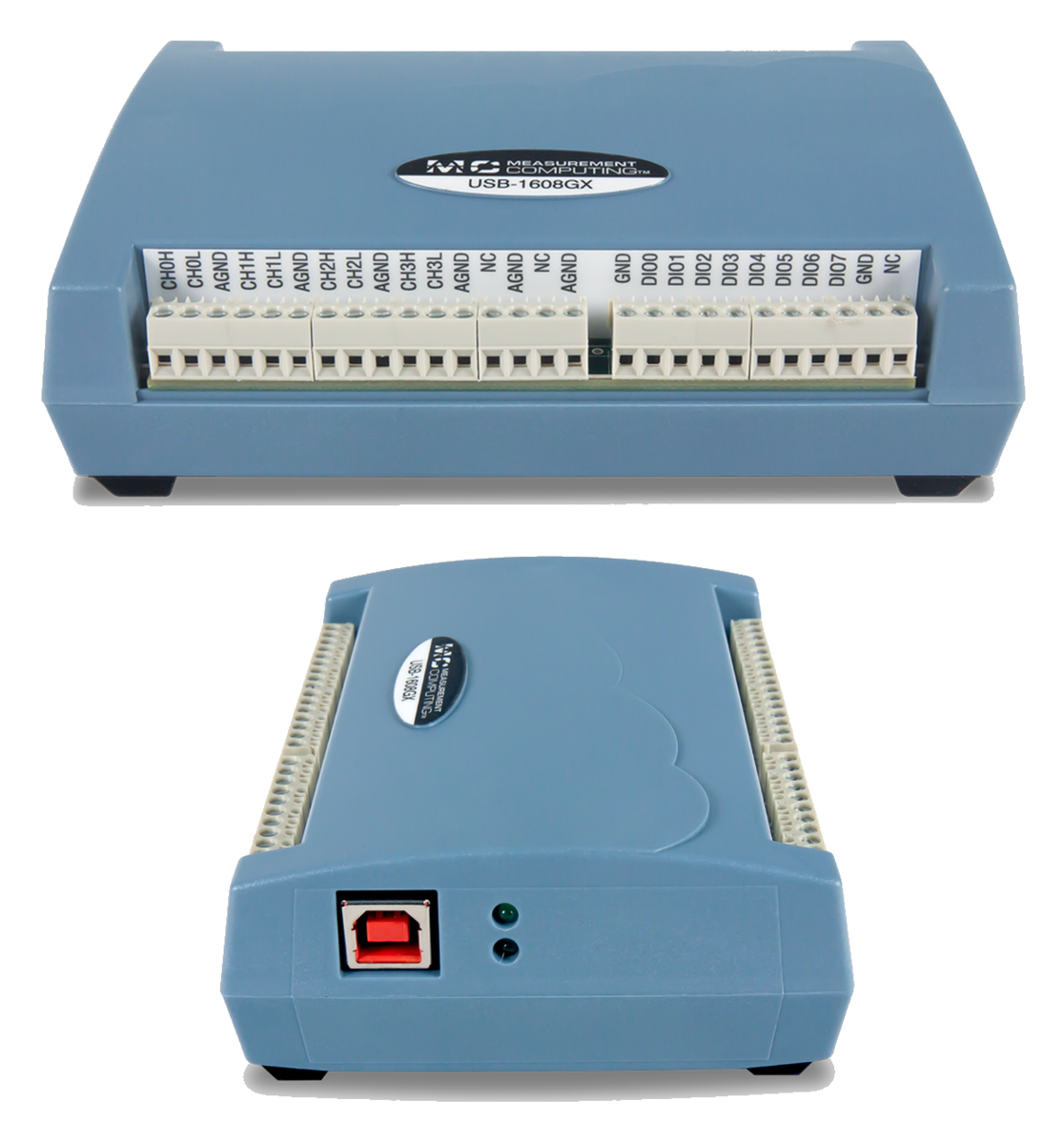

Connections
Block Diagram
View Results ( 2 ) Page
| Teilnummer | Datenblatt | Beschreibung |
|---|---|---|
| 6069-410-011 |  |
Datenerfassung u. -aufzeichnung USB-1608GX-2AODAQ ;16SE/8Diff Input; 16b |
| 6069-410-059 | |
Datenerfassung u. -aufzeichnung USB-1608G; DAQ; 16SE/8Diff Input; 16b; 250kS/s; 8DI/O Produc |
