Analog Devices Inc. EVAL-AD4113ARDZ ADC Evaluation Board
Analog Devices EVAL-AD4113ARDZ ADC Evaluation Board features all the capabilities of the AD4113 and allows the user to evaluate its full range of functions. The AD4113 is a 16-bit, 125kSPS analog-to-digital converter (ADC) with a ±10V input voltage range with eight single-ended or four differential channels. All channels have onboard overvoltage protection.
The Analog Devices EVAL-AD4113ARDZ board includes voltage references, power, and data insulation, and connects to the EVAL-SDPCK1Z system demonstration platform. The SDP board provides the connection to a PC via a universal serial bus (USB) port and can provide power to the EVAL-AD4113ARDZ board from the PC USB port. The ACE software configures the AD4113 device and provides DC time-domain analysis in the form of histograms, waveform graphs, and associated noise analysis for ADC performance evaluation.
Features
- Fully-featured evaluation board for the AD4113
- PC control in conjunction with the system demonstration platform (EVAL-SDP-CK1Z)
- PC software control and data analysis
- Standalone capability
Applications
- Process control
- PLC/DCS modules
- Instrumentation and measurement
Required Equipment
- EVAL-AD4113ARDZ evaluation board
- EVAL-SDP-CK1Z
- DC signal source
- PC running Windows® with a USB 2.0 port and the evaluation tool installed
- AD4113 Analysis|Control|Evaluation (ACE) software

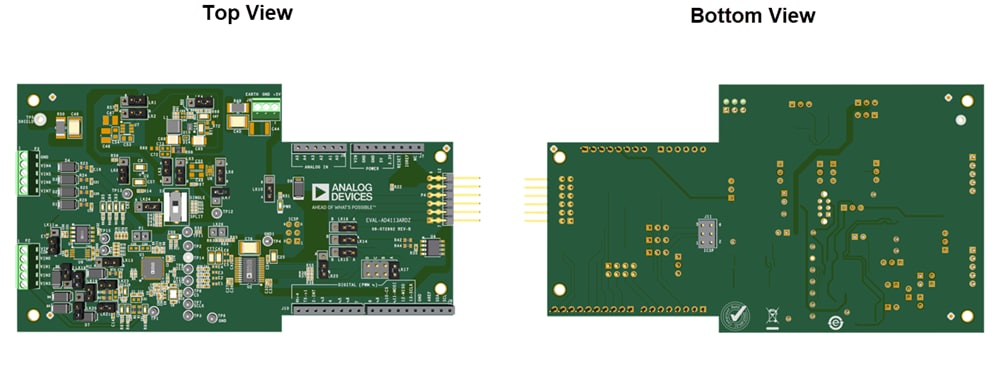

Board Layout
Related ADC
Analog Devices Inc. AD4113 16-Bit Sigma-Delta ADC
A sigma-delta ADC that integrates an AFE for four fully differential or eight single-ended inputs.
