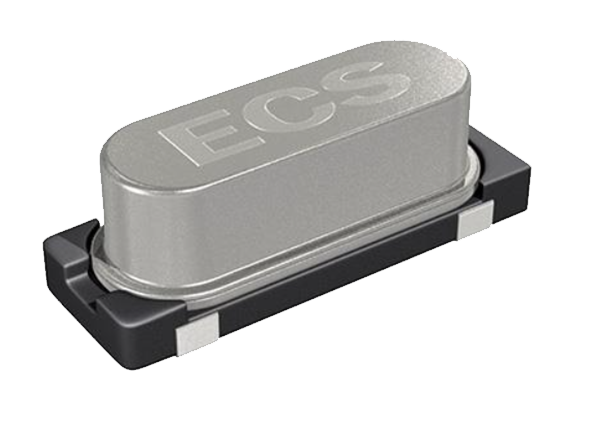

ECS CSM-4AX SMD Crystals
ECS CSM-4AX SMD Crystals feature a low profile of 5mm, 30MHz maximum frequency rating, and ±30ppm frequency tolerance. These crystals come in a resistance-weld metal package with an industry-standard footprint. The series offers a 30Ω to 200Ω ESR range, 7pF shunt capacitance, and 500µW drive level. ECS CSM-4AX SMD Crystals have an operating temperature range of -10°C to +70°C.
Features
- Low profile
- Industry-standard footprint
- Lead free
- RoHS compliant
Specifications
- 5mm profile height
- 3.5MHz to 30MHz frequency range
- 30Ω to 200Ω ESR range
- ±30ppm frequency tolerance
- 7pF shunt capacitance
- 500µW drive level
- -10°C to +70°C operating temperature range
